Short Specifications

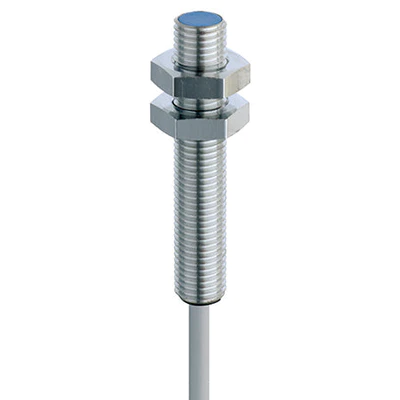

DW-AD-509-M8
| Operating range | 0…4 mm |
| Switching frequency max. | 1600 Hz |
| Supply voltage | 10…30 |
| Polarity | Analog |
| Output | Voltage |
| Connection | PUR, 2 m, 3 wire |
| Housing size [mm] | M8 |
| Enclosure rating | IP 67 |
| Housing material | Chrome-plated brass |
| Temperature range | -25…+70°C |
| Sensor Height | 45 mm |
| Mounting | Quasi-embeddable |
